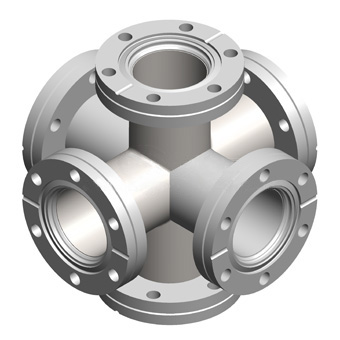

6-ти ходовой соединитель
The 6 way cube fittings with Conflat flanges are used for ultra-high vacuum applications. The flange size CF-100 (4” bore, 6” OD) and below are made of one piece block. The flange size CF-150 and above are made of welded plates. The standard material is S.S.304, other materials are available upon request.
It provides 6-Way crosses series : Fittings type and Cubes type.
According to customer demand to design and manufacture, application for Research units or special vacuum environments.
1.CF CUBES with Fractional Thread
2.CF CUBES with Metric Thread
We can provide larger or special specifications, please provide the drawings sent to ec@high-light.com.tw
Our business specialist will contact you and offer quote.
6-ти ходовой соединитель
| Кодировка | Материал | A | B | C | t |
|---|---|---|---|---|---|
| 63FXA | 304 S.S. | 76.2 | 63.5 | 152.4 | 1.65 |
| 50FXA | 304 S.S. | 76.2 | 50.8 | 152.4 | 1.65 |
| 40FXA | 304 S.S. | 57.2 | 38.1 | 114.3 | 1.65 |
| 25FXA | 304 S.S. | 47.6 | 25.4 | 95.2 | 1.65 |
| 16FXA | 304 S.S. | 34.5 | 19.05 | 69 | 1.65 |
| 150FXA | 304 S.S. | 127 | 152.4 | 254 | 2.7 |
| 80FXA | 304 S.S. | 82.5 | 76.2 | 165.1 | 1.65 |
| 100FXA | 304 S.S. | 98.4 | 101.6 | 196.8 | 2 |
6-ти ходовой соединитель с невращающимися фланцами CF
| Кодировка | Материал | A | B | C | D |
|---|---|---|---|---|---|
| CF150SXA | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
| CF100SXA | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 |
| CF63SXA | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 |
| CF35SXA | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 |
| CF16SXA | 304 S.S. | 37.5 | 19.05 | 33.8 | 75 |
6-ти ходовой соединитель с тремя вращающимися фланцами CF
| Кодировка | Материал | A | B | C | D |
|---|---|---|---|---|---|
| CR35SXA | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 |
| CR150SXA | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
| CR100SXA | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 |
| CR63SXA | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 |
| CR16SXA | 304 S.S. | 47.2 | 19.05 | 33.8 | 94.4 |
Кубический соединитель с фланцами CF | Дюймовые
CF cubes is 6-wayВ crossesВ with CF flangesВ Fractional ThreadВ for UHV systems. CFВ Flange size is CF to CF200, larger or special size available upon request, and provides your dimensional drawings
Note:
1. Material : S.S.304
2. Thread : Fractional Thread
3. Other materials (S.S.304L, S.S.316 etc.) available upon request.
| Кодировка | A | B | Flange size | Thread Size | Thread Depth |
|---|---|---|---|---|---|
| 150FXA | 304 S.S. | 127 | 152.4 | 254 | 2.7 |
| 100FXA | 304 S.S. | 98.4 | 101.6 | 196.8 | 2 |
| 80FXA | 304 S.S. | 82.5 | 76.2 | 165.1 | 1.65 |
| 63FXA | 304 S.S. | 76.2 | 63.5 | 152.4 | 1.65 |
| 50FXA | 304 S.S. | 76.2 | 50.8 | 152.4 | 1.65 |
| 40FXA | 304 S.S. | 57.2 | 38.1 | 114.3 | 1.65 |
| 25FXA | 304 S.S. | 47.6 | 25.4 | 95.2 | 1.65 |
| 16FXA | 304 S.S. | 34.5 | 19.05 | 69 | 1.65 |
| CF150SXA | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
| CF100SXA | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 |
| CF63SXA | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 |
| CF35SXA | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 |
| CF16SXA | 304 S.S. | 37.5 | 19.05 | 33.8 | 75 |
| CR150SXA | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
| CR100SXA | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 |
| CR63SXA | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 |
| CR35SXA | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 |
| CR16SXA | 304 S.S. | 47.2 | 19.05 | 33.8 | 94.4 |
| CF200CUF | 127 | 203.2 | CF200 | .312-24 | 12.7 |
| CF150CUF | 101.6 | 152.4 | CF150 | .312-24 | 12.7 |
| CF100CUF | 76.2 | 102 | CF100 | .312-24 | 12.7 |
| CF63CUF | 56.65 | 63.5 | CF63 | .312-24 | 12.7 |
| CF50CUF | 43 | 50.8 | CF50 | .312-24 | 9.4 |
| CF35CUF | 35.05 | 38.1 | CF35 | .250-28 | 9.4 |
| CF16CUF | 17.25 | 15.7 | CF16 | 8-32 | 6.35 |
| CF200CUM | 127 | 203.2 | CF200 | M8 | 12 |
| CF150CUM | 101.6 | 152.4 | CF150 | M8 | 12 |
| CF100CUM | 76.2 | 102 | CF100 | M8 | 12 |
| CF63CUM | 56.65 | 63.5 | CF63 | M8 | 12 |
| CF50CUM | 43 | 50.8 | CF50 | M8 | 9 |
| CF35CUM | 35.05 | 38.1 | CF35 | M6 | 9 |
| CF16CUM | 17.25 | 15.7 | CF16 | M4 | 6 |
Кубический соединитель с фланцами CF | Метрические
CF cubes is 6-wayВ crossesВ with CF flangesВ Metric ThreadВ for UHV systems. CFВ Flange size is CF to CF200, larger or special size available upon request, and provides your dimensional drawings .
Note:
1. Material : S.S.304
2. Thread : Metric Thread
3. Other materials (S.S.304L, S.S.316 etc.) available upon request.
| Кодировка | A | B | Flange size | Thread Size | Thread Depth |
|---|---|---|---|---|---|
| 150FXA | 304 S.S. | 127 | 152.4 | 254 | 2.7 |
| 100FXA | 304 S.S. | 98.4 | 101.6 | 196.8 | 2 |
| 80FXA | 304 S.S. | 82.5 | 76.2 | 165.1 | 1.65 |
| 63FXA | 304 S.S. | 76.2 | 63.5 | 152.4 | 1.65 |
| 50FXA | 304 S.S. | 76.2 | 50.8 | 152.4 | 1.65 |
| 40FXA | 304 S.S. | 57.2 | 38.1 | 114.3 | 1.65 |
| 25FXA | 304 S.S. | 47.6 | 25.4 | 95.2 | 1.65 |
| 16FXA | 304 S.S. | 34.5 | 19.05 | 69 | 1.65 |
| CF150SXA | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
| CF100SXA | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 |
| CF63SXA | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 |
| CF35SXA | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 |
| CF16SXA | 304 S.S. | 37.5 | 19.05 | 33.8 | 75 |
| CR150SXA | 304 S.S. | 139.7 | 152.4 | 202.5 | 279.4 |
| CR100SXA | 304 S.S. | 109.5 | 101.6 | 151.6 | 219 |
| CR63SXA | 304 S.S. | 85.7 | 63.5 | 113.6 | 171.4 |
| CR35SXA | 304 S.S. | 62.5 | 38.1 | 69.5 | 125 |
| CR16SXA | 304 S.S. | 47.2 | 19.05 | 33.8 | 94.4 |
| CF200CUF | 127 | 203.2 | CF200 | .312-24 | 12.7 |
| CF150CUF | 101.6 | 152.4 | CF150 | .312-24 | 12.7 |
| CF100CUF | 76.2 | 102 | CF100 | .312-24 | 12.7 |
| CF63CUF | 56.65 | 63.5 | CF63 | .312-24 | 12.7 |
| CF50CUF | 43 | 50.8 | CF50 | .312-24 | 9.4 |
| CF35CUF | 35.05 | 38.1 | CF35 | .250-28 | 9.4 |
| CF16CUF | 17.25 | 15.7 | CF16 | 8-32 | 6.35 |
| CF200CUM | 127 | 203.2 | CF200 | M8 | 12 |
| CF150CUM | 101.6 | 152.4 | CF150 | M8 | 12 |
| CF100CUM | 76.2 | 102 | CF100 | M8 | 12 |
| CF63CUM | 56.65 | 63.5 | CF63 | M8 | 12 |
| CF50CUM | 43 | 50.8 | CF50 | M8 | 9 |
| CF35CUM | 35.05 | 38.1 | CF35 | M6 | 9 |
| CF16CUM | 17.25 | 15.7 | CF16 | M4 | 6 |
